Sediment Cartridges

  • Melt Blown Cartridges

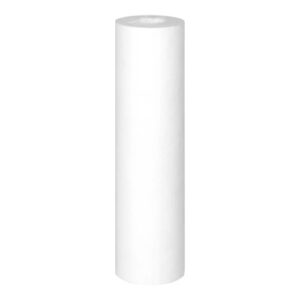

    Melt Blown Cartridges

    Melt Blown Cartridges

    Spun Polypropylene Sediment Filters
    Graded Density Outer Layer Middle Layer Inner Layer
    0.5 Micron Filter Layers 5 Micron 3 Micron 0.5 Micron
    1 Micron Filter Layers 20 Micron 5 Micron 1 Micron
    5 Micron Filter Layers 30 Micron 10 Micron 5 Micron
    10 Micron Filter Layers 30 Micron 20 Micron 10 Micron
    20 Micron Filter Layers 50 Micron 30 Micron 20 Micron
    50 Micron Filter Layers 100 Micron 100 Micron 50 Micron

    Melt Blown Sediment Filters in all standard 10", 20", and big blue sizes. Available with nominal micron ratings of 0.5, 1, 5, 10, 20, and 50. Ideal for aggressive chemicals and general filtration requirements when depth filtration is required. Each cartridges is individually shrink wrapped.

    These filters are designed for the removal of dirt, rust and sediment from water. 5 and 20 micron are the most popular sizes for drinking water applications. Consider using a 20 micron cartridge first and then stepping down to a 5 micron cartridge.

    Cartridges rated for temperatures up to 125 °F. Polypropylene construction for excellent chemical resistance. No binders, additives, or lubricants to leach into the water. 5 GPM max flow rate for 5 micron cartridge, 9-3/4" × 2-1/2" OD.

    *Depth filtration chart and diagram to right refers to LF-PP gradient density cartridges only.

  • Pleated Sediment Cartridges

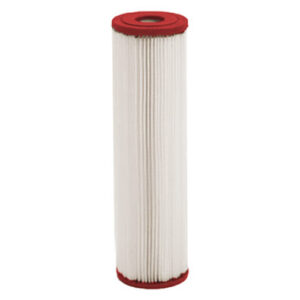

    Pleated Sediment Cartridges

    Pleated Sediment Cartridges

    Pleated sediment cartridges remove dirt, rust and sediment from water while providing an increased surface area and longer life. Pleated filters down to 5 microns are washable and reusable.

    Cartridges come in Standard 10" and 20", Full-Flow 10" and 20", Hurricane Model 40, 90 and 170 sizes. Also available in 19-1/2", 29-1/2", 30" and 40" lengths.

    Available in 0.35 and 1 micron absolute (99.9% removal), and nominal ratings of 1, 5, 10, 20, and 50. Each cartridge is individually wrapped.

    About Harmsco Pleated Cartridges Pleated Cartridge Comparison

    Pleated Sediment Filters vs Standard Filters
  • String Wound Cartridges

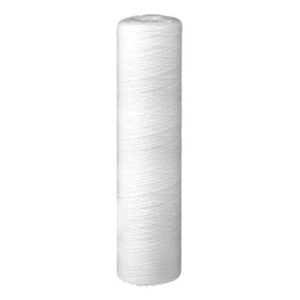

    String Wound Cartridges

    String Wound Sediment Cartridges

    String wound polypropylene sediment filters in all standard 10", 20", and big blue sizes. Available with nominal µ ratings of 1, 5, 10, 20, 25/30, and 50. Full line of wound filter cartridges offering excellent depth filtration. Each cartridges is individually wrapped, bagged, or sleeved.

    These filters are designed for the removal of dirt, rust and sediment from water. 5 and 20 micron are the most popular sizes for drinking water applications. Consider using a 20 micron cartridge first and then stepping down to a 5 micron cartridge.

    Cartridges rated for temperatures up to 125 °F. Polypropylene construction for excellent chemical resistance. No binders, additives, or lubricants to leach into the water. 5 GPM max flow rate for 5 micron cartridge, 9-3/4" × 2-1/2" OD.

    string wound water filters

Sediment Cartridges

Sediment cartridges remove dirt, sand and rust commonly found in water that travels through aging pipes and come in a variety of styles and micron sizes (pore size of the cartridge).

Melt blown polypropylene cartridges are designed for the removal of dirt, rust and sediment from water. These filters have graded density layers, meaning the outer layers are more porous, catching larger particles while the inner layers are a finer micron, catching smaller particles.

Pleated filters are designed to have an increased surface area and longer life. These cartridges are washable & reusable, and come in a range of sizes and micron (µ) ratings.

String wound cartridges are designed for the removal of dirt, rust and sediment from water. These cartridges are rated for temperatures up to 125 °F. Polypropylene construction for excellent chemical resistance. No binders, additives, or lubricants to leach into the water.
