Melt Blown Cartridges
Melt Blown Cartridges
| Graded Density | Outer Layer | Middle Layer | Inner Layer |
|---|---|---|---|
| 0.5 Micron Filter Layers | 5 Micron | 3 Micron | 0.5 Micron |
| 1 Micron Filter Layers | 20 Micron | 5 Micron | 1 Micron |
| 5 Micron Filter Layers | 30 Micron | 10 Micron | 5 Micron |
| 10 Micron Filter Layers | 30 Micron | 20 Micron | 10 Micron |
| 20 Micron Filter Layers | 50 Micron | 30 Micron | 20 Micron |
| 50 Micron Filter Layers | 100 Micron | 100 Micron | 50 Micron |
Melt Blown Sediment Filters in all standard 10″, 20″, and big blue sizes. Available with nominal micron ratings of 0.5, 1, 5, 10, 20, and 50. Ideal for aggressive chemicals and general filtration requirements when depth filtration is required. Each cartridges is individually shrink wrapped.
These filters are designed for the removal of dirt, rust and sediment from water. 5 and 20 micron are the most popular sizes for drinking water applications. Consider using a 20 micron cartridge first and then stepping down to a 5 micron cartridge.
Cartridges rated for temperatures up to 125 °F. Polypropylene construction for excellent chemical resistance. No binders, additives, or lubricants to leach into the water. 5 GPM max flow rate for 5 micron cartridge, 9-3/4″ × 2-1/2″ OD.

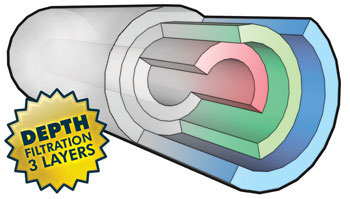

*Depth filtration chart and diagram to right refers to LF-PP gradient density cartridges only.
10″ X 2-1/2″ Melt Blown Cartridges
-
10″ x 2-1/2″ (5 or 20 Micron) 4-Layer, Grooved Melt Blown Sediment Cartridge
$6.25- Integrated 3-Stage Process Yielding True Depth Filtration
- NSF Certified
- FDA Compliant Material
- 5 or 20 Micron Rating
-
10″ x 2-1/2″, 5 Micron, 4-Layer Melt Blown Sediment Cartridge
$4.25- Integrated 3-Stage Process Yielding True Depth Filtration
- NSF Certified
- FDA Compliant Material
- 5 Micron Rating
-
10″ x 2-1/2″ (0.5, 1, 5, 10, 20 or 50 Micron) Melt Blown Sediment Cartridge
From: $4.00- 0.5, 1, 5, 10, 20 or 50 Micron Rating
- Each Cartridge Has 3 Layers
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
-
10″ x 2-1/2″, (1, 5 or 20 Micron) Grooved Melt Blown Polypropylene Filter
$6.00- 1,5 or 20 Micron Filtration
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
- Grooved Cartridges with Large Surface Area
-
Pentek Spun Polypropylene 9-3/4″ x 2-3/8″, (1, 5 or 25 Micron) Melt Blown Sediment Filter
$7.00- Removes Dirt, Rust & Sediment
- 1 Micron Filtration
-
Equivalent to Everpure EC110 Prefilter Melt Blown Sediment Cartridge
$3.25 - $4.00- Removes Dirt, Rust & Sediment
- 10 Micron Filtration
- 9.75″ x 2.5″ Cartridge Size
20″ X 2-1/2″ Melt Blown Cartridges
-
20″ x 2-1/2″, 5 Micron, 4-Layer Melt Blown Sediment Cartridge
$8.25- Integrated 3-Stage Process Yielding True Depth Filtration
- NSF Certified
- FDA Compliant Material
- 5 or 20 Micron Rating
-
20″ x 2-1/2″ (1, 5, 10, 20 or 50 Micron) Melt Blown Sediment Cartridge
$8.00- 1, 5, 10, 20 or 50 Micron Rating
- Each Cartridge Has 3 Layers
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
-
20″ x 2-1/2″, 5 Micron Grooved Melt Blown Polypropylene Filter
$10.50 - $12.00- 5 Micron Filtration
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
- Grooved Cartridges with Large Surface Area
-
Pentek Spun Polypropylene 20″ x 2-3/8″ (1, 5 or 25 Micron) Sediment Filter
$14.00- Removes Dirt, Rust & Sediment
- 1,5 or 25 Micron Filtration
-
Equivalent to Everpure EC210 Prefilter Cartridge
$6.50 - $8.00- Removes Dirt, Rust & Sediment
- 10 Micron Filtration
- 20″ x 2.5″ Cartridge Size
10″ x 4-1/2″ Full-Flow (BB) Melt Blown Cartridges
-
10″ x 4-1/2″ (1, 5, 20 or 50 Micron) Melt Blown Sediment Cartridge
$14.00- 1, 5, 20 or 50 Micron Rating
- Each Cartridge Has 3 Layers
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
-
10″ x 4-1/2″ (5 or 20 Micron) Grooved Melt Blown Polypropylene Filter
$18.00- 5 or 20 Micron Filtration
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
- Grooved Cartridges with Large Surface Area
-
Pentek Dual Gradient 10″ x 4-1/2″ (25/1, 50/5 or 75/25 Micron) Melt Blown Sediment Filter
$24.00- Removes Dirt, Rust & Sediment
- Gradient Density Sediment Cartridge
- 25 Micron Filtration
20″ x 4-1/2″ Full-Flow (BB) Melt Blown Cartridges
-
20″ x 4-1/2″ Full Flow (1, 5, 20 or 50 Micron) Melt Blown Sediment Cartridge
$28.00- 1, 5, 20 or 50 Micron Rating
- Each Cartridge Has 3 Layers
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
-
20″ x 4-1/2″, 1 or 20 Micron, 4-Layer Melt Blown Sediment Cartridge
$25.00- Integrated 3-Stage Process Yielding True Depth Filtration
- NSF Certified
- FDA Compliant Material
- 1 or 20 Micron Rating
-
Pentek Dual Gradient 20″ x 4-1/2″ (25/1, 50/5 or 75/25 Micron) Melt Blown Sediment Filter
$40.00- Removes Dirt, Rust & Sediment
- Gradient Density Sediment Cartridge
- 25/1, 50/5 or 75/25 Micron Filtration
30″ x 2-1/2″ Commercial Melt Blown Cartridges
-
30″ x 2-1/2″ (1, 5 or 20 Micron) Melt Blown Sediment Cartridge
$14.00- 1, 5 or 20 Micron Filtration
- Each Cartridge Has 3 Layers
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
40″ x 2-1/2″ Commercial Melt Blown Cartridges
-
40″ x 2-1/2″ (5 or 20 Micron) Melt Blown Sediment Cartridge
$18.00- 5 or 20 Micron Filtration
- Each Cartridge Has 3 Layers
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
Grooved Melt Blown Cartridges
-
10″ x 2-1/2″ (5 or 20 Micron) 4-Layer, Grooved Melt Blown Sediment Cartridge
$6.25- Integrated 3-Stage Process Yielding True Depth Filtration
- NSF Certified
- FDA Compliant Material
- 5 or 20 Micron Rating
-
10″ x 2-1/2″, (1, 5 or 20 Micron) Grooved Melt Blown Polypropylene Filter
$6.00- 1,5 or 20 Micron Filtration
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
- Grooved Cartridges with Large Surface Area
-
10″ x 4-1/2″ (5 or 20 Micron) Grooved Melt Blown Polypropylene Filter
$18.00- 5 or 20 Micron Filtration
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
- Grooved Cartridges with Large Surface Area
-
20″ x 2-1/2″, 5 Micron Grooved Melt Blown Polypropylene Filter
$10.50 - $12.00- 5 Micron Filtration
- Gradient Density Sediment Cartridge
- Increased Dirt Holding Capacity
- Grooved Cartridges with Large Surface Area
Melt Blown Cartridges
| Graded Density | Outer Layer | Middle Layer | Inner Layer |
|---|---|---|---|
| 0.5 Micron Filter Layers | 5 Micron | 3 Micron | 0.5 Micron |
| 1 Micron Filter Layers | 20 Micron | 5 Micron | 1 Micron |
| 5 Micron Filter Layers | 30 Micron | 10 Micron | 5 Micron |
| 10 Micron Filter Layers | 30 Micron | 20 Micron | 10 Micron |
| 20 Micron Filter Layers | 50 Micron | 30 Micron | 20 Micron |
| 50 Micron Filter Layers | 100 Micron | 100 Micron | 50 Micron |
Melt Blown Sediment Filters in all standard 10″, 20″, and big blue sizes. Available with nominal micron ratings of 0.5, 1, 5, 10, 20, and 50. Ideal for aggressive chemicals and general filtration requirements when depth filtration is required. Each cartridges is individually shrink wrapped.
These filters are designed for the removal of dirt, rust and sediment from water. 5 and 20 micron are the most popular sizes for drinking water applications. Consider using a 20 micron cartridge first and then stepping down to a 5 micron cartridge.
Cartridges rated for temperatures up to 125 °F. Polypropylene construction for excellent chemical resistance. No binders, additives, or lubricants to leach into the water. 5 GPM max flow rate for 5 micron cartridge, 9-3/4″ × 2-1/2″ OD.
*Depth filtration chart and diagram to right refers to LF-PP gradient density cartridges only.
