Valve Fleck 9100

Move your mouse over the following
links to swap out the photo:
Front | Back

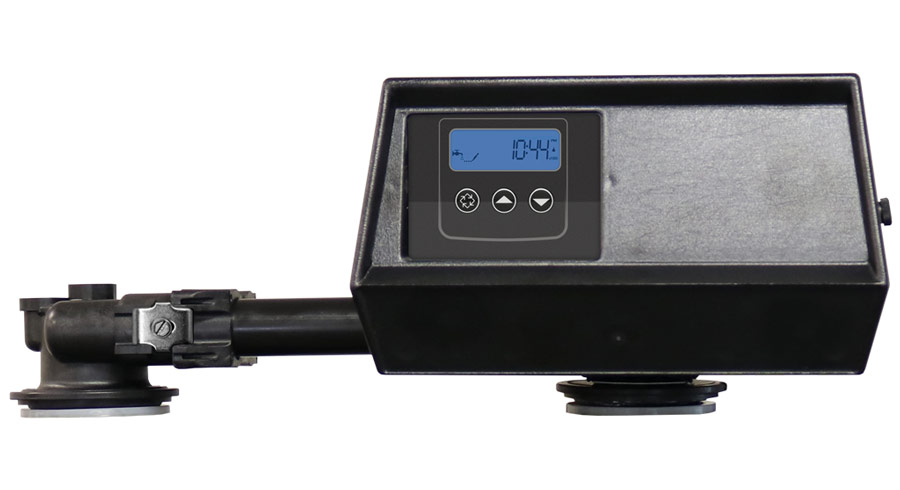

Fleck 9100 Meter Control Valve

Model #: Fleck 9100M

Download Service Manual

Tested and Certified:

NSF/ANSI Standard 44 & 372

Light Commercial/Residential Twin Tank Valve

Product Features

  • Fleck* Fiber-reinforced polymer valve body for superior strength and durability, non-corrosive, and UV resistant
  • Continuous service flow rate of 20.1 GPM with a backwash of 8.5 GPM
  • Backwash capability accommodates softener tanks up to 16″
  • Fully adjustable 5-cycle control for efficient and reliable water treatment system
  • Time-tested, hydraulically-balanced piston for service and regeneration
  • Rugged-built electromechanical timer designed with heavy duty 3/8″ wide plastic gears
  • Salt and water savings by using 100% capacity of the tank in service before switching to the second tank
  • Regenerates immediately when needed for continuous soft water
  • Regenerates with soft water keeping system clean for optimum operating efficiency and minimum maintenance

Options

  • Brine cam auxiliary switch
  • Electromechanical timer auxiliary switch
  • Plumbing connections in 3/4″ to 1-1/4″ NPT, BSP, and sweat
  • Fiber-reinforced polymer or stainless steel bypass valve

Valve Specifications

Valve material: Fiber Reinforced Polymer Inlet/Outlet: 3/4", 1", 1-1/4" NPTF

Flow Rates (50 psi Inlet) – Valve Alone

Continuous
(15 psi drop):		 18/20 GPM (3/4″ / 1″) Peak
(25 psi drop):		 23/26 GPM (3/4″ / 1″)
CV
(flow at 1 psi drop):		 4.6/5.1 (3/4″ / 1″) Max. backwash
(25 psi drop):		 8/8 GPM (3/4″ / 1″)

Regeneration

Downflow/Upflow: Downflow Only Adjustable cycles: Yes
Time available: Up to 164 minutes per cycle

Meter Information

Meter accuracy range: Meter capacity range (gal.):
0.25 – 15 GPM ± 5% (3/4″ Paddle)
0.7 – 40 GPM ± 5% (1″ Paddle)		 125 – 2,125 (3/4″ Standard)
625 – 10,625 (3/4″ Extended)
310 – 5,270 (1″ Standard)
1,500 – 26,350 (1″ Extended)

Dimensions

Distributor pilot: 1.05" pipe O.D. Drain line: 1/2" NPTF
Brine line: 1600 – 3/8" Injector System: 1600
Mounting base: 2-1/2" – 8 NPSM Height from top of tank: 7.3"
Riser Tube Diameter: 3/4" Riser Height: 1/4" Below top of tank

Typical Applications

Water softener: 6"-12" diameter

Additional Information

Injector brine system: 1600 Electrical rating: 24/110/220v, 50/60 Hz
Max. VA: 8.9 Estimated shipping weight: 14.5 lbs.
Pressure: Hydrostatic: 300 psi
Working: 20 – 125 psi		 Temperature: 34 – 110 °F

Approvals

UL (powerhead only) TESTED and CERTIFIED by the WQA to NSF/ANSI Standard 44 for Water Softener Performance. TESTED and CERTIFIED by the WQA to NSF/ANSI Standard 372 for Lead Free Compliance.
