Viqua IHS12-D4 Integrated Home Series Ultraviolet Water Sterilizer System, 12 GPM


In Stock as of 6:00pm EST

Only 1 left in stock

  • Whole House UV System
  • 10″ Sediment Filter & 20″ Carbon Block Filter
  • 99.99% Destruction of Bacteria, Cysts & Virus
  • 12 Gallons Per Minute
  • Easy Installation
  • 3/4″ MPT Connections

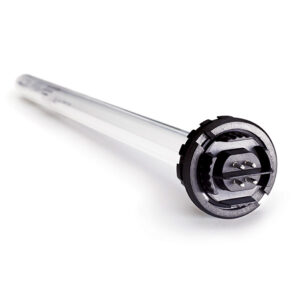

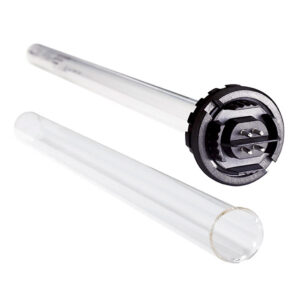

Need a replacement parts? This system uses this lamp, sleeve, or combo

Viqua System Warranty – Quality Guaranteed – The Best in the Industry
10 Years on UV Reactor • 3 Years on Ballast • 1 Year on Lamps

Protect Your Family, Employees & Customers

UV light has germicidal properties

Ultraviolet Sterilization Effectively Kills Bacteria, Viruses and Parasites such as Cryptosporidium & Giardia. Chlorination only keeps bacteria at low levels. The difference between Chlorination and UV is the difference between Sanitization and Sterilization. UV Sterilization provides complete protection for your family, employees and customers, from Microbes in your water.

It is estimated that seven to 30 million Americans develop a gastrointestinal illness each year, from drinking contaminated water. The Center for Disease Control and Prevention estimates 900 to 1,000 deaths occur from microbial illnesses from US drinking water. You can Protect Your Family, Company and Customers health, simply, easily and inexpensively by adding a UV Sterilization System to your home.

The UV Max IHS12-D4 system uses the same proven UV technology and expertise that we build into the systems that purify the leading brands of bottled water and the drinking water of large cities like New York, Seattle, and Washington. Enjoy that same confidence in the water you and your family drink with UV Max IHS12-D4.

The UV Max IHS12-D4 comes equipped with a UV and filters to provide an easy-to-choose, install and maintain solution for all your drinking water needs.

This system is UL listed and is equipped with filters to remove sediment, improve taste and remove odors from the water. Supported by VIQUA’s Reference Card to quickly answer common questions and a lamp counter to remind you when to change the lamp.

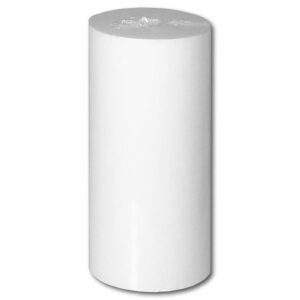

  • 10" 5 Micron Sediment Prefilter

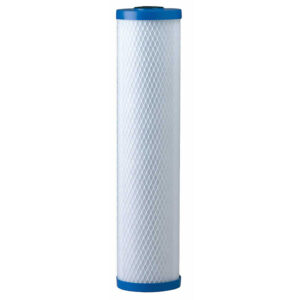

  • 20" 5 Micron Carbon Block Filter
  • 3/4" Connections
  • Factory Pressure Tested

Features and Benefits:

  • Proven 99.99% effective
    UV Max IHS12-D4 systems undergo exhaustive testing and evaluation to ensure they destroy 99.99 percent of harmful microorganisms, including E. coli, Cryptosporidium, and Giardia.
  • Environmentally-friendly and chemical-free
    Purification with the UV Max IHS12-D4 is a safe, natural process that adds no chemicals and does not affect the taste or odor of your water.
  • Advanced, space-saving design
    Using a sophisticated 3-D modeling process, we’ve designed a compact UV chamber that delivers maximum purification, and can fit just about anywhere in your home.
  • Automatic lamp replacement reminder
    The helpful lamp timer starts at 365 and counts down the days to annual lamp replacement. An alarm will also sound at this one year mark. Once the lamp is replaced, a press of the lamp timer reset button will restart the countdown.
  • Confidence in Proper System Operation

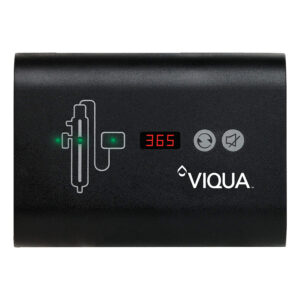

    Indicator lights on the power supply show the status of each system component. So, at a glance, you can confirm that your water is being purified properly. Warning lights appear when system maintenance is required.
  • Safe and easy to maintain
    Replacing the UV lamp is simple and can be completed in minutes – without tools. A safety cap on the chamber prevents children from accessing the lamp or electrical components. The special lamp plug ensures that no one can power the UV lamp if it’s not in the UV chamber.
  • Stable, energy-efficient power delivery
    The electronic power supply accurately maintains lamp intensity during power fluctuations, assuring continuous purification. The energy-efficient system uses about the same amount of energy as a 40 watt light bulb.
  • Handy Reference Card
    Conveniently located behind the power supply, the reference card outlines the most important system functions and maintenance for your quick, on-the-spot questions.

Additional information

Weight 45 lbs
Dimensions 25.5 × 12 × 28 in
Cartridge Size


Gallons Per Minute

Material Composition

Micron Size

Port Size

Country of Origin

Viqua IHS12-D4 Brochure


Viqua IHS12-D4 Service Manual


Parts / Accessories
